Peugeot launches range of ready to go conversions
Peugeot has a launched a new range of factory fitted, ready to go conversions. All six initial versions are based on the Boxer large van and you can choose a Tipper, Dropside, Luton, Low-Floor Luton, Box Body and Curtainside.
Peugeot will be showcasing their new 'Built for Business' range at the Commercial Vehicle show which takes place 24-26th April at the NEC Birmingham. Visitors to the show are expected to be able to view a Low-Floor Luton, which Peugeot proclaims offers ease of loading and a massive 22 cubic metres of load space.
The conversion range is based on the Peugeot Boxer 335 chassis, powered by a 2.0 BlueHDi 160 engine with six-speed manual transmission. Standard equipment includes air conditioning, an uprated battery and revised dual-leaf rear suspension with anti-roll bar.
Richard Abbott, Head of National Specialist Fleets at PSA Group commented “With the launch of Built for Business light CV conversions, Peugeot is providing certainty for customers that they are buying a vehicle where all parts of the conversion are built to the same exacting standard as the base vehicle”.

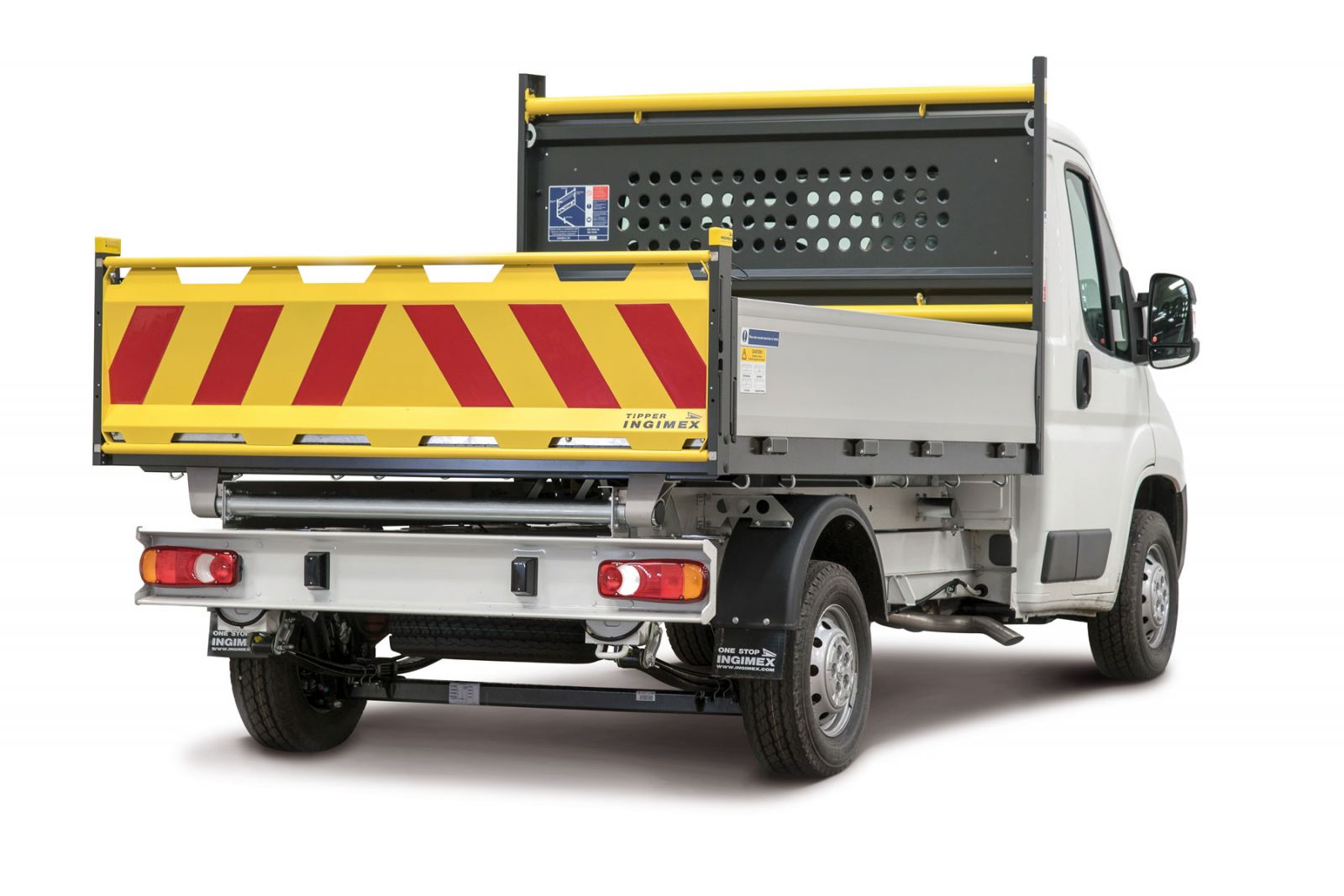

Tipper
PEUGEOT Boxer Built for Business Tipper models are based on the Boxer 335 L2 single cab and L3 crew cab models. Bodywork features include bolted construction for ease of maintenance, while parts are made from steel and aluminium to provide robust construction and optimum payload.
The front bulkhead/gantry provides a number of load securing points, including one-tonne capacity load securing eyes in the upper structure. The body side board and integrated lever lock assemblies have been tested to burst loads of 1.7 tonnes while the theft-resistant hinges have been tested to a burst load of 1.3-tonnes. Full “Chapter 8” high-visibility markings for the tail board are included. The compact scissor-type underfloor tipping gear includes overload and hose burst protection. The mechanism is designed to be maintenance free throughout the life of the vehicle.
The PEUGEOT Boxer Built for Business Tipper offers payloads of up to 1,222kg.
Weights and dimensions
Model |
L2 Single Cab |
L3 Crew Cab |
Wheelbase |
3,450mm |
4,035mm |
Internal length |
2,870mm |
2,670mm |
Internal width |
2,026mm |
2,026mm |
Sideboard height |
400mm |
400mm |
Tailboard height |
600mm |
600mm |
Overall length |
5,895mm |
6,100mm |
Payload* |
1,222kg |
1,033kg |
Dropside
The body for Dropside range is built to the same rigorous standards as the Tipper and also features steel and aluminium construction for maximum durability and optimum payload. Three variants of the Dropside will be available, based on the Boxer 335 L2 Single Cab, L3 Single Cab and L3 Crew Cab. The Built for Business Dropside offers payloads up to 1,441kg.
Features include a similar front gantry/bulkhead to the Tipper and 400mm deep side and tailboards made from double-skinned aluminium. The load floor is built using a single piece of non-slip birch plywood, with 800kg capacity retractable load securing rings fitted to its perimeter frame.
Aluminium corner posts are fitted at the rear of the body. These can be lifted out when not required and the side and tailboards removed to provide a flatbed body.
Bolted, modular construction means that a number of options can be easily included. For example; a tool trunk, folding footsteps, grab handles or a tail-lift.
Weights and dimensions
Model |
L2 Single Cab |
L3 Single Cab |
L3 Crew Cab |
Wheelbase |
3,450mm |
4,035mm |
4,035mm |
Internal length |
3,059mm |
3,644mm |
2,805mm |
Internal width |
2,026mm |
2,026mm |
2,026mm |
Sideboard height |
400mm |
400mm |
400mm |
Tailboard height |
400mm |
400mm |
400mm |
Overall length |
5,645mm |
6,229mm |
6,229mm |
Payload* |
1,441kg |
1,366kg |
1,253kg |
Luton
The Luton range is available with either the Boxer 335 L3 or L4 Single Cab. All Built for Business Luton bodies feature an aerodynamically designed pod above the Boxer cab, reducing air drag while providing additional storage space in the body.
The body panels are constructed from high quality GRP for optimum strength, built on a robust galvanised steel frame. Alternatively, lightweight aluminium frames will provide up to 80kgs of additional payload.
Both the front bulkhead and side panels are fitted with internal kick strips to protect against damage. The interior features both load locking and tie-rail tracks for a range of load restraint options. Additional rows and layouts are available. The rear closure features a lightweight roller shutter door with locking handle.
Standard equipment for the Built for Business Luton includes a 500kg capacity column tail lift, complete with dual controls to enable operation from inside or outside the vehicle. An interior light is provided, while external marker lights are also standard.
Weights and dimensions
Model |
L3 Single Cab |
L4 Single Cab |
Wheelbase |
4,035mm |
4,035mm |
Internal length |
3,480mm |
4,150mm |
Internal width |
2,057mm |
2,057mm |
Internal height |
2,235mm |
2,390mm |
Volume |
16m3 |
20m3 |
Payload* |
1,147kg |
979kg |

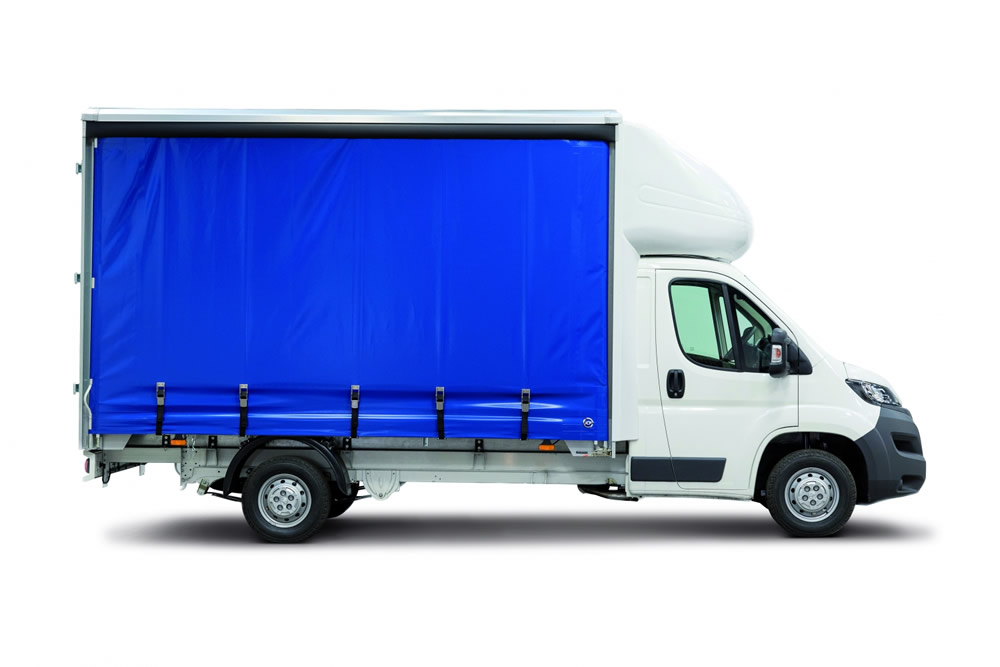

Curtainside
The PEUGEOT Boxer Built for Business Curtainside also benefits from an aerodynamic Luton pod over the cab. The Curtainside body provides easy access to the load area from either side. Alternatively, the fully-opening barn doors provide rear access.
The Curtainside body is available with either the Boxer 335 L3 or L4 Single Cab. The body provides a maximum payload of up to 965kgs (with a 17m3 volume) or a maximum volume of 20m3 with a 879kg payload. This enables up to six Euro-pallets to be carried.
Similar construction techniques for the Luton are used for the Curtainside body, with the same lightweight aluminium alternative, yielding up to 75-80kgs more in payload. The reinforced front bulkhead is equipped with a kick strip to guard against damage.
Load restraining equipment includes aluminium V-groove side raves with four pull-up hooks. Lashing rings, providing additional load restraint points are available as an option. The side apertures open up to 2,080mm, to ease loading from either side. The body comes with an interior light and external side marker lights.
Weights and dimensions
Model |
L3 Single Cab |
L4 Single Cab |
Wheelbase |
4,035mm |
4,035mm |
Internal length |
3,480mm |
4,150mm |
Internal width |
2,057mm |
2,057mm |
Internal height |
2,350mm |
2,350mm |
Volume |
17m3 |
20m3 |
Payload* |
965kg |
879kg |
Box Body
The PEUGEOT Boxer Built for Business Box body shares many of its construction features with the Luton and Curtainside, such as base and rear frame construction in galvanised steel, with a lightweight option for aluminium, which can increase payload by up to 80kgs.
The body is available with either the PEUGEOT Boxer 335 L3 or L4 Single Cab. Features include high-quality GRP panels to provide durable, lightweight construction. Inside, a kick strip guards against damage. The body provides a load volume of up to 20m3 and payloads up to 1,051kgs.
Standard load restraint equipment includes load locking and tie rail strips. Additional rows and other options are available.
The rear closure is a lightweight roller shutter door with locking handle. Load handling equipment includes a standard 500kg capacity column tail lift. Dual controls enable operation from both inside and outside the vehicle. Lighting equipment includes an interior light with external rear marker lights.
Weights and dimensions
Model |
L3 Single Cab |
L4 Single Cab |
Wheelbase |
4,035mm |
4,035mm |
Internal length |
3,480mm |
4,150mm |
Internal width |
2,057mm |
2,057mm |
Internal height |
2,235mm |
2,390mm |
Volume |
16m3 |
20m3 |
Payload* |
1,051kg |
983kg |

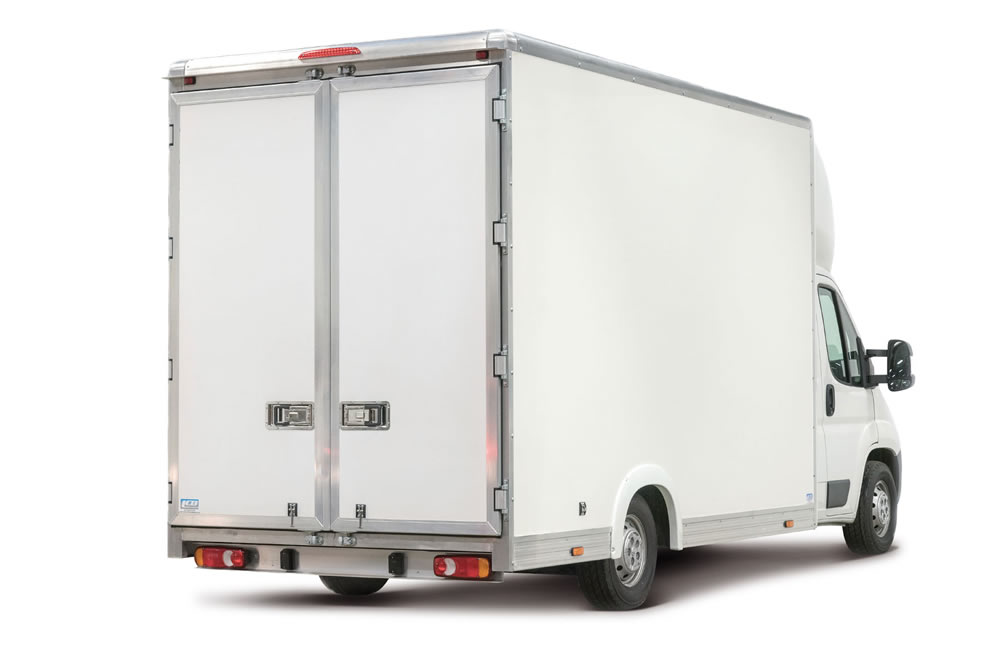

Low-Floor Luton
One of the advantages of the PEUGEOT Boxer front-wheel-drive chassis is that low floor bodywork can be used to ease loading access and increase body volume. The PEUGEOT Boxer Built for Business Low Floor Luton provides the option of a high-volume 22m3 Luton body, the largest available in the Boxer Built for Business range. It also provides over a tonne of payload with up to 1,050kgs available.
Body panels are made from high-quality 14mm GRP to provide strength and maximise payload, while the floor is made from non-slip birch plywood. Payload can be increased by around 120kg by opting for lightweight body panels. The front bulkhead is protected from damage by an alloy kick strip.
Both body sides are equipped with load lock strips. At the rear, the standard closure is a pair of flush-fitting barn doors, with a lightweight roller shutter available as an option. Like the standard Luton body, the storage space above the cab is provided by an aerodynamic pod.
Weights and dimensions
Model |
Low Floor Luton |
Internal length |
4,080mm |
Internal width |
2,160mm |
Internal height |
2,500mm |
Overall height |
3,200mm |
Overall length |
6,570mm |
Payload* |
1,050kg |
*Payload (excluding driver) is calculated including oil, water, lubricants, tools, spare wheel and 90% full fuel tank. When calculating the payload, an average figure for the driver is 75kg (Please note: drivers’ weights will vary). Additional passengers and accessories must be taken into account. It is the operator’s responsibility that the plate weights are not exceeded.
